VESDA Pipe - 4m Length

Model Number: VESDA4M

Length: 4m

Can be purchased in bundles of 10

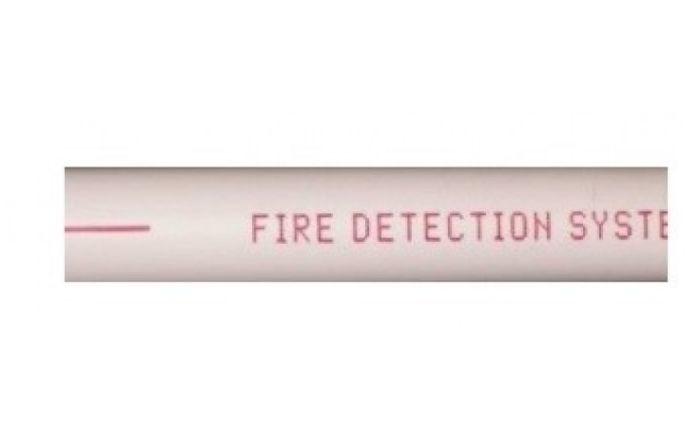

VESDA Sampling Pipe - 4m length with "belled" ends

The pipe is made of a PVC material which is white in colour and is labeled with “Fire Detection System” along the run of the pipe for easy distinguishing.

Composite material Rigid PVC - Polyvinyl chloride
Tensile strength 32-62Mpa
Tensile modulus 2400-4100Mpa
Hardness 65-85 shore “D”
Temperature rating -20ºC to +70ºC
Flammability Self extinguishing
Thermal expansion 5.4 x 10-5 per ºC
Break down voltage 17-25KV/mm
Diameter of pipe Outer: 25mm Inner: 21.8mm
Ends: 1 end is held open, other is standard

VESDA4M_TDS
