Trafalgar

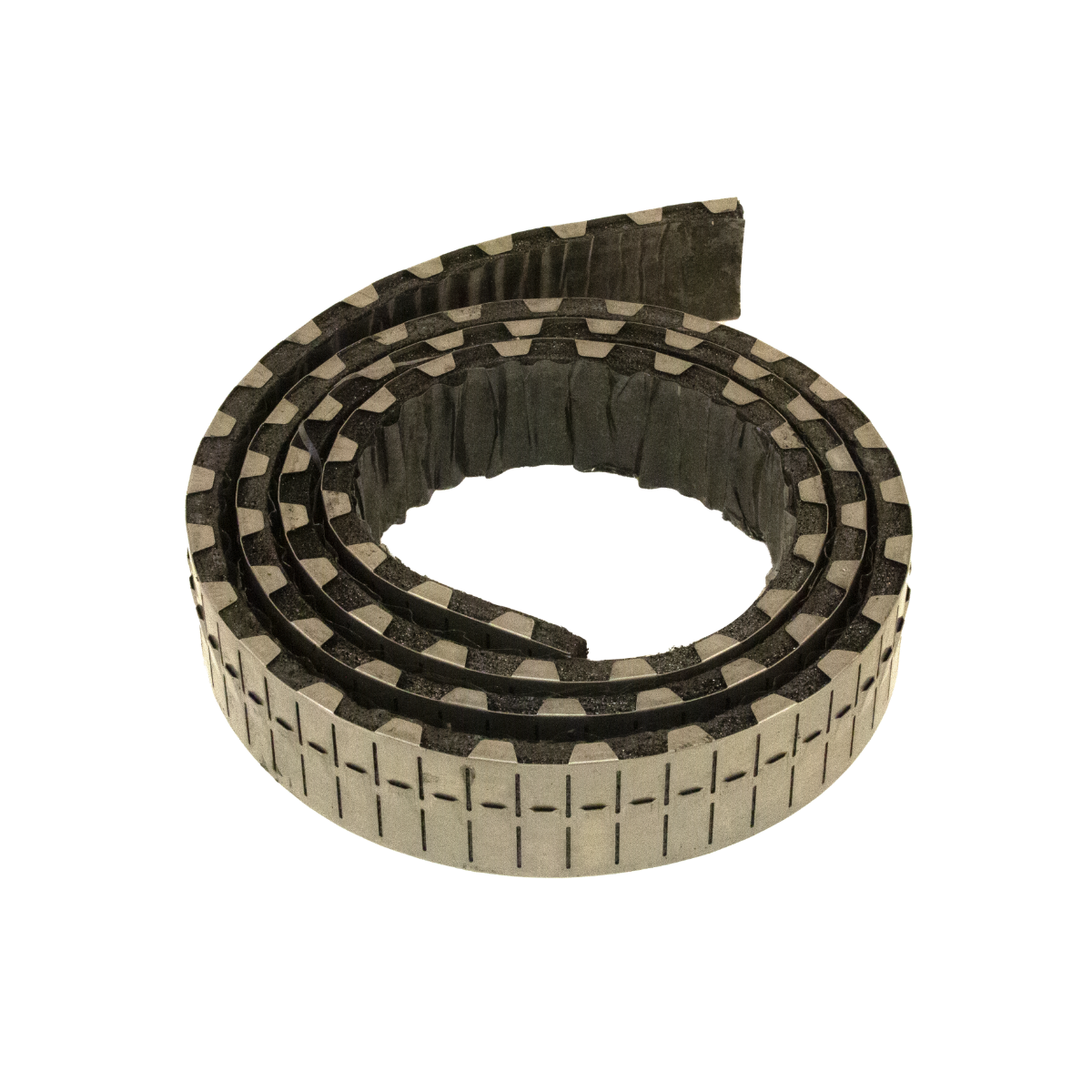

Unicorn Continuous fire collar - 50mm x 2300mm roll

Name: Unicorn Continuous fire collar - 50mm x 2300mm roll
Brand: Trafalgar
SKU: UNICORN

Product variants:

Description

The Trafalgar Unicorn Continuous Fire Collar is a versatile fire collar designed for use with service penetrations through fire-rated barriers. Its continuous design uses 154 cut-and-snap 15mm segments, allowing the collar to be easily customised to suit different service diameters and reducing the need to stock multiple collar sizes.

The Unicorn has been extensively fire tested, including approvals for PEX-A, PEX-B and PEX-AL-PEX pipes without the need for wrap.

Tested to AS 1530.4:2014, the system provides Fire Resistance Levels (FRL) up to -/240/240 and is supplied with the required fixings for installation.

Product Specifications

Model Number: UNICORN
Brand: Trafalagar
154 segments (15 mm each)
Packaged as a 2310mm roll
Cut to length to suit service
Fire test approvals to AS1530 Part 4: 2014
Tested to AS 1530.4:2014
FRLs of up to -/240/240 on an extensive range of mixed services – from PEX to PVC, cables, pair coil bundles and many other service types in between.
