CARBINE
Carbine CDC-1 Radius EN2-4 40kg - 80kg door closer, Silver, with Backcheck
Couldn't load pickup availability

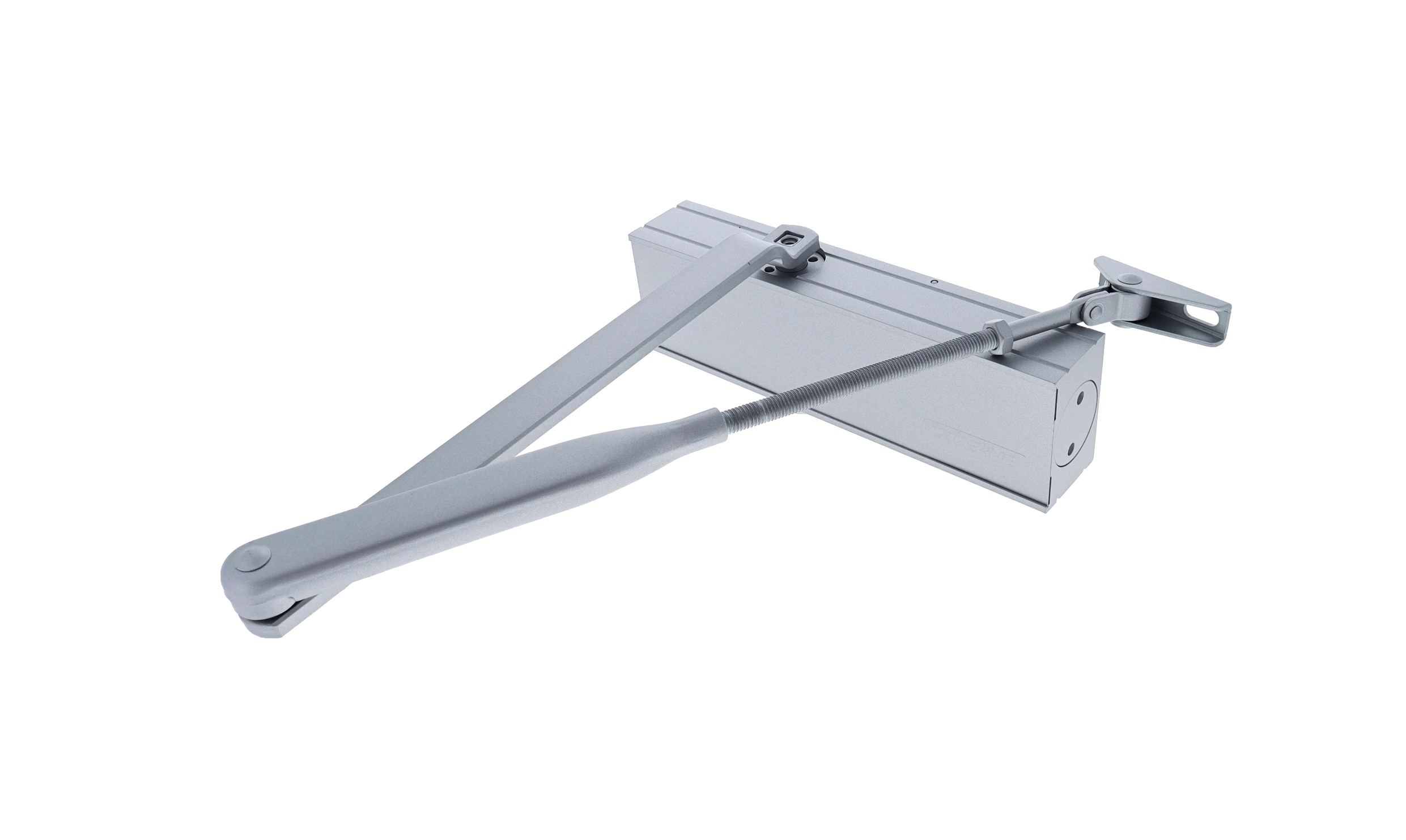

Carbine CDC-1 Radius EN2-4 40kg - 80kg door closer, Silver, with Backcheck
- Model Number: CDC-1-S
- Fire rated for 2 hours
- Constructed from 6061 grade aluminium
- Tested to EN1154 standards
- Cycle tested to 500,000 cycles
- Standard arm 180 degree opening
- Parallel arm 130 degree opening
- Sliding arm pull 180 degree, push 110 degree opening (120
degree CDC-5) - Hold open 130 degree opening (180 degree, hold open angle
70-150 - degree CDC-5)
- Adjustable closing & latching speed
- Adjustable back check 70 to 90 degrees
- Thermo-constant valve
- Surface mount
- Transom mount on push side
- Rack & pinion
- Positional mounting for closer strength
- Supplied with standard and parallel arm fittings
- Single-action door
- Non-handed installation
- Supplied with timber and self-drilling metal screws
- Constructed with extruded anodized aluminium body
- Slide rail arms for the CDC range include the hold open insert
- Adjustable power size 2-4
- Parallel bracket mount on size
3-4 - Max door width 1100mm
- Size 2 width of 850mm and
weight of 40kg - Size 3 width of 950mm and
weight of 60kg - Size 4 width of 1100mm and
weight of 80kg - Body size 207mm x 60mm x 39mm
- Available in silver and matte
black finish
