Flame Detection Network Camera Pro

Sign Up for Trade Pricing

Description

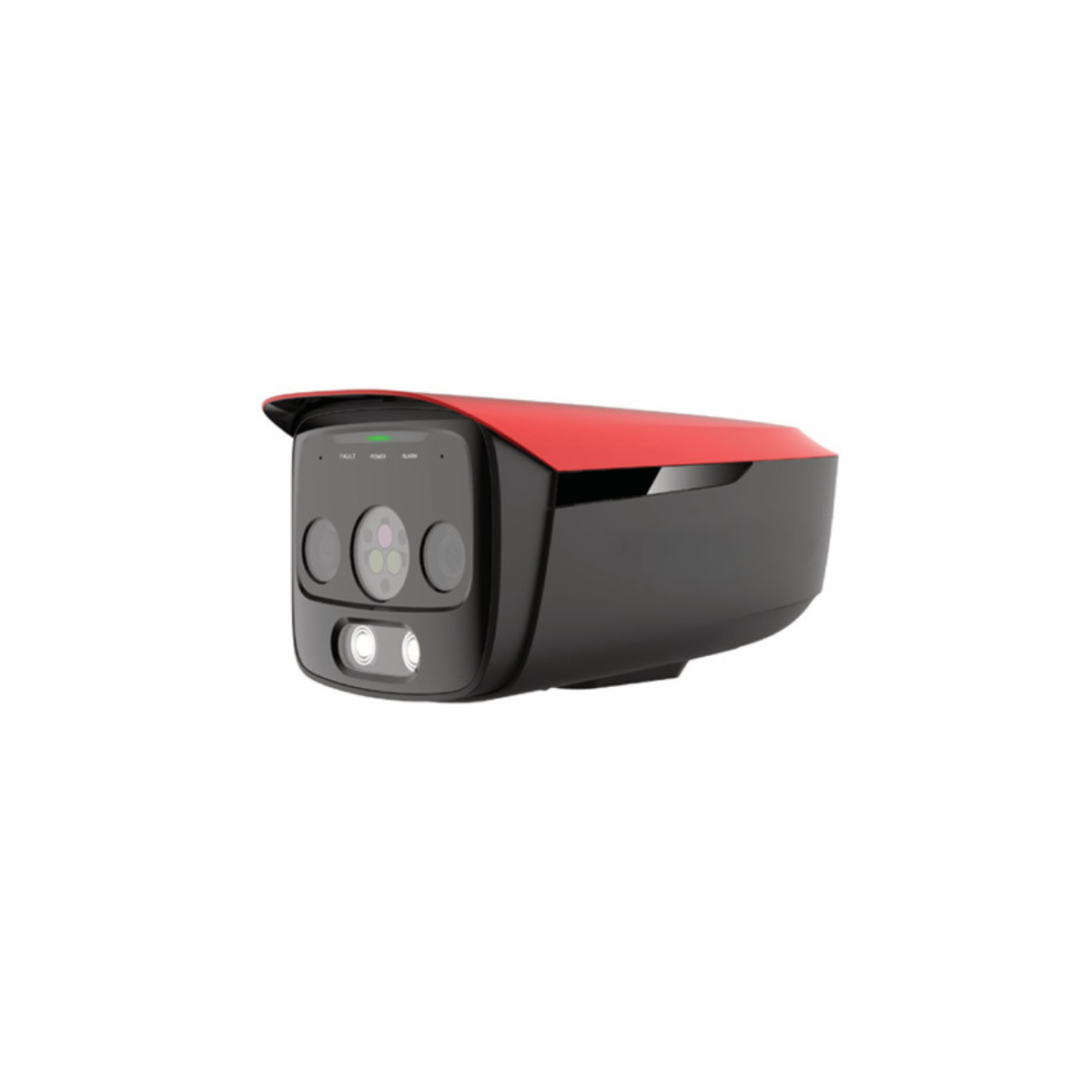

The DHI-HY-FT443HFP Flame Detection Network Camera Pro is an intelligent thermal imaging product developed specifically to meet the needs of the fire protection industry. Adopts dual-channel design of visible light and thermal imaging, it supports triple IR flame detection, fulfilling the requirements for integrated security and fire protection. It supports 25 pseudo-color modes and multiple functions including real time temperature detection, fire early warning, cold and hot spot alerts, temperature alarms, smoke and flame shape detection, stereo analysis (smoking detection), and IVS (Tripwire and Intrusion detection).

Product Specifications

  • Industry leading uncooled VOx focal plane detector with high sensitivity
  • Supports flame detection, cold and hot spot alarm and industrial temperature detection
  • Supports sound and LED indication, and supports binocular fusion
  • AI functions: smoke and flame shape detection, stereo analysis (smoking detection), and IVS (Tripwire and Intrusion detection)
  • Visible light adopts a 5MP 1/2.7 inch CMOS image sensor, which has good low illumination effect and high image clarity
  • Support multi-level user management, humanized monitoring, and permission management
  • Support H.265 encoding with high compression ratio, achieving ultra low bitstream transmission
  • Support 3-way alarm input and 2-way alarm output functions, support max. 256 G Micro SD card
  • Built in MIC and high volume speakers, high decibel alarm sound 70dB ≥ 1m (A-weighted)
  • Built in high-efficiency infrared illuminator and white light, with a maximum illumincation distance of 50 meters
  • Supports DC12V-24V/POE power supply
  • IP67 Rated

Downloads

TDS
