About

Description
The Inductor is used to take in liquid extinguishing agent additives or foam concentrate according to the Venturi principle. ‚ÄúL‚ÄĚ-type foam inductors are extremely lightweight and do not need a handle. The admixing rate can be set between 0,5 and 6 % and turned off entirely.
Description
The Inductor is used to take in liquid extinguishing agent additives or foam concentrate according to the Venturi principle. ‚ÄúL‚ÄĚ-type foam inductors are extremely lightweight and do not need a handle. The admixing rate can be set between 0,5 and 6 % and turned off entirely.
LI-ion Fire solution

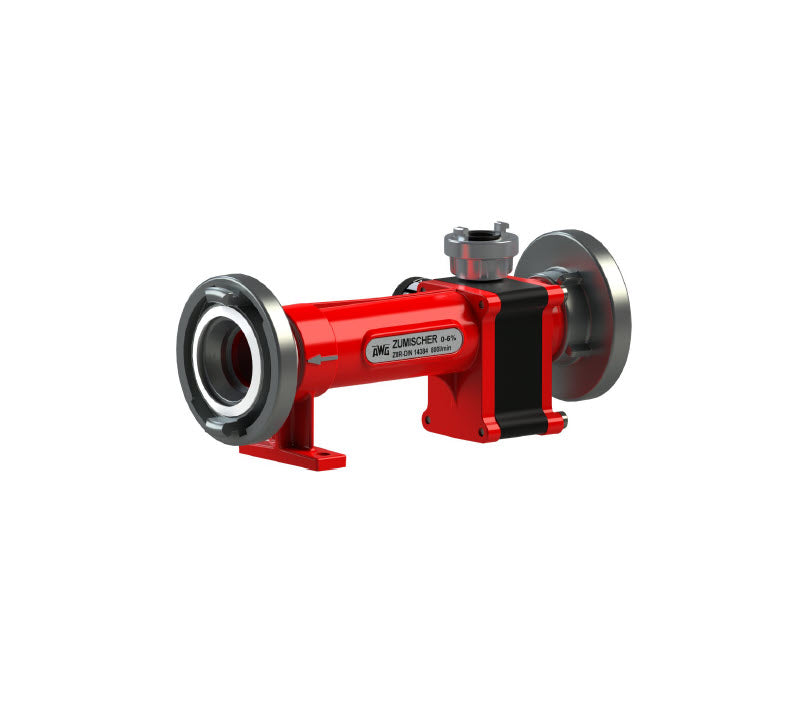

AWG 400lpm Inductor "L" Z4 - Storz 65

Product Specifications

  • Model Number: AWGZ4-INDUCTOR
  • System Outlet: Storz
  • System Inlet: Storz
  • Length [mm]: 355
  • Width [mm]: 140
  • Height [mm]: 152
  • Nominal size: Z4
  • Size Inlet: 65
  • Material adapter: Aluminium
  • Size Outlet: 65
  • Reference pressure p1 [bar]: 5
  • Flow rate at reference pressure p1 [lpm]: 400
  • Inlet: Storz 65
  • max. permissible operating pressure [bar]: 16
  • Outlet: Storz 65
  • Weight [kg]: 2.40
  • Admixing rate [%]: 1-6
  • Warranty: 12 months
