CARBINE

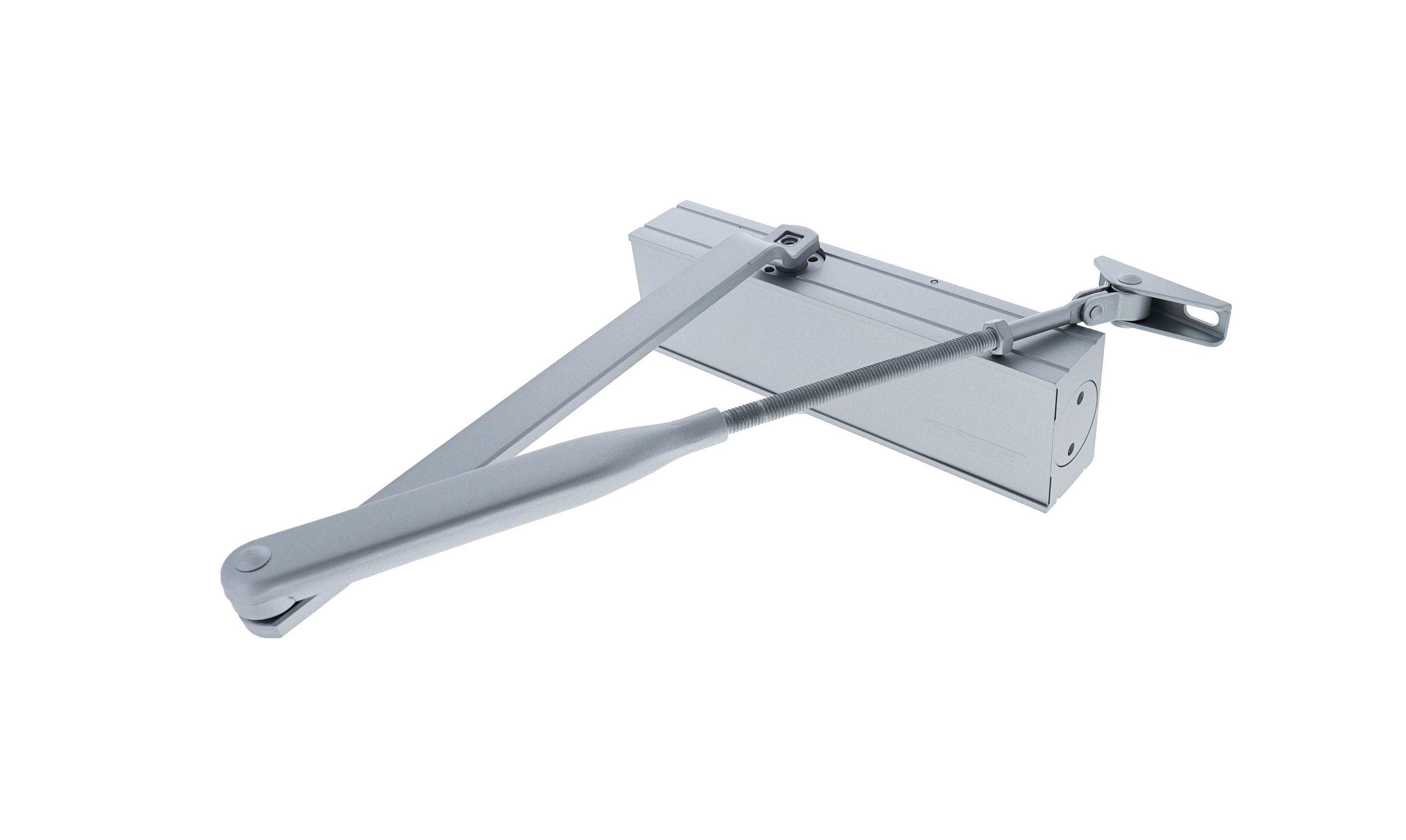

Carbine CDC-5 Radius EN2-6 40kg - 120kg door closer, Silver, with Backcheck and delayed action

Sign Up for Trade Pricing

Description

Carbine CDC-5 Radius EN2-6 40kg - 120kg door closer, Silver, with Backcheck and delayed action

Product Specifications

  • Model Number: CDC-5-S
  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminium
  • Tested to EN1154 standards
  • Cycle tested to 500,000 cycles
  • Standard arm 180 degree opening
  • Parallel arm 130 degree opening
  • Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)
  • Hold open 130 degree opening (180 degree, hold open angle 70-150
  • degree CDC-5)
  • Adjustable closing & latching speed
  • Adjustable back check 70 to 90 degrees
  • Thermo-constant valve
  • Surface mount
  • Transom mount on push side
  • Rack & pinion
  • Positional mounting for closer strength
  • Supplied with standard and parallel arm fittings
  • Single-action door
  • Non-handed installation
  • Supplied with timber and self-drilling metal screws
  • Constructed with extruded anodized aluminium body
  • Slide rail arms for the CDC range include the hold open insert
  • Adjustable power size 2-6
  • Parallel bracket mount on size 3-5
  • Max door width 1400mm
  • Size 2 width of 850mm and weight of 40kg
  • Size 3 width of 950mm and weight of 60kg
  • Size 4 width of 1100mm and weight of 80kg
  • Size 5 width of 1250mm and weight of 100kg
  • Size 6 width of 1400mm and weight of 120kg
  • Adjustable delayed action
  • Body size 256.5mm x 60mm x 48mm
  • Available in silver and matte black finish
