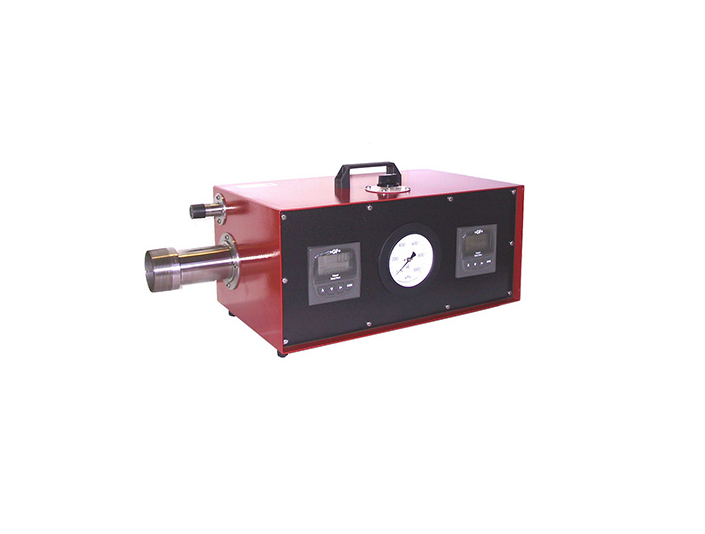

Ambit PF-2D fire hydrant & hose reel tester

• Model Number: FLOWTESTER2
• Mains power NOT required
• Flowmeters can read in LPM or LPS
• Flowmeters include totaliser
• Cabinet is manufactured in powder coated
  aluminium
• Flow tubes 316 SS with BSPT male connections
• Flow range on 2 1/2” tube: 0/1800 LPM
• Flow range on 3/4” tube: 0/180 LPM
• Pressure gauge range: 0/1000 kPa or 0/1600 kPa
• Accuracy on 2 1/2” line: +/- 2% F.S.D. up to 1200 LPM and 3% from 1200 to 1800 LPM
• Accuracy on 3/4” line: +/- 2% F.S.D. up to 120 LPM and 3% from 120 to 180 LPM
• Accuracy on pressure gauge: +/- 1% F.S.D.
• Cabinet Size: 510mm (long) x 230mm (high) x 310mm (deep)
• Weight (approx.): Model PF-1D - 10kg. Model PF-2D - 12kg.
• Includes flowmeter calibration certificate
• Ambit Instruments maintain full facilities for service and repair.
• Special order, non-stocked item, lead time up to 16 weeks if not in stock locally within Australia.

FLOWTESTER2_TDS
