About

Description
The Ambit PF-1D fire hydrant tester has been designed to meet the need for easy verification of available water pressure and flow at the service point.
Description
The Ambit PF-1D fire hydrant tester has been designed to meet the need for easy verification of available water pressure and flow at the service point.
Ambit Instruments

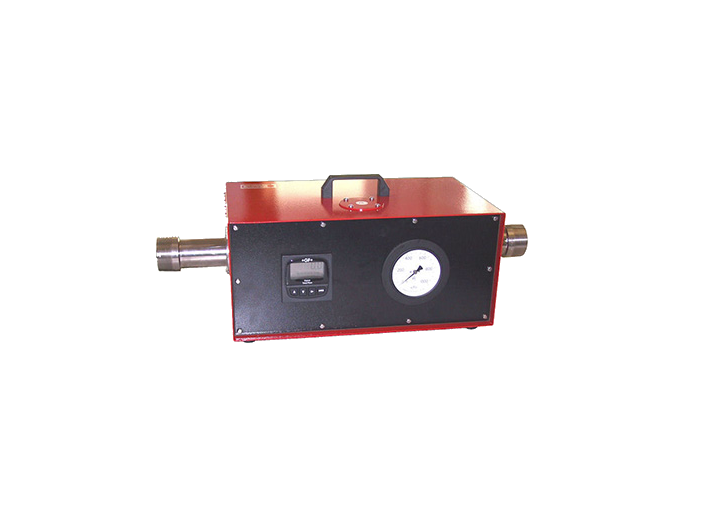

Ambit PF-1D fire hydrant tester

Product Specifications

  • Model Number: FLOWTESTER1
  • Mains power NOT required
  • Flowmeters can read in LPM or LPS
  • Flowmeters include totaliser
  • Cabinet is manufactured in powder coated aluminium
  • Flow tubes 316 SS with BSPT male connections
  • Flow range on 2 1/2‚ÄĚ tube: 0/1800 LPM
  • Flow range on 3/4‚ÄĚ tube: 0/180 LPM
  • Pressure gauge range: 0/1000 kPa or 0/1600 kPa
  • Accuracy on 2 1/2‚ÄĚ line: +/- 2% F.S.D. up to 1200 LPM and 3% from 1200 to 1800 LPM
  • Accuracy on 3/4‚ÄĚ line: +/- 2% F.S.D. up to 120 LPM and 3% from 120 to 180 LPM
  • Accuracy on pressure gauge: +/- 1% F.S.D.
  • Cabinet Size: 510mm (long) x 230mm (high) x 310mm (deep)
  • Weight (approx.): Model PF-1D - 10kg. Model PF-2D - 12kg.
  • Includes flowmeter calibration certificate
  • Ambit Instruments maintain full facilities for service and repair.
