Wolf

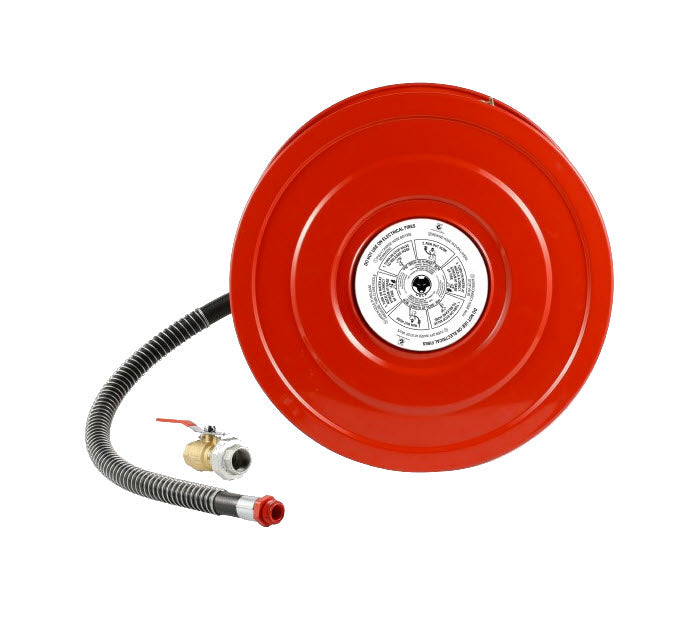

30m x 25mm Swing arm Hose Reel

Description

30m x 25mm swing arm fire hose reel to AS/NZ 1221

Product Specifications

  • Model Number: HR3025SA-WF
  • Brand: Wolf
  • Nozzle: 25mm Brass
  • Approvals: AS/NZ 1221
  • Certification: Global-Mark ID 109076
  • Plate Diameter: 550mm
  • Drum Material: Metal red powder coated.
  • Waterway Construction: Galvanised steel
  • Inlet Pipe/Union Construction: Galvanised steel
  • Maximum Working Pressure: 1.4 MPa
  • Hydraulic Test Pressure: 1.8MPa
  • Mounting plate Construction: 1mm Steel
  • Mounting Plate Finish: Powder-Coated Red
  • Nozzle Construction: Brass
  • Gooseneck Construction: Galvanised steel
  • Single Units: Yes
  • STD Hose Length & Diameter: 30 Metres & 25mm Diameter
  • Warranty: 12 Months

Downloads

Wolf HR3025SA-WF GLOBAL-MARK CERTIFICATE

Wolf HR3025SA-WF TDS
