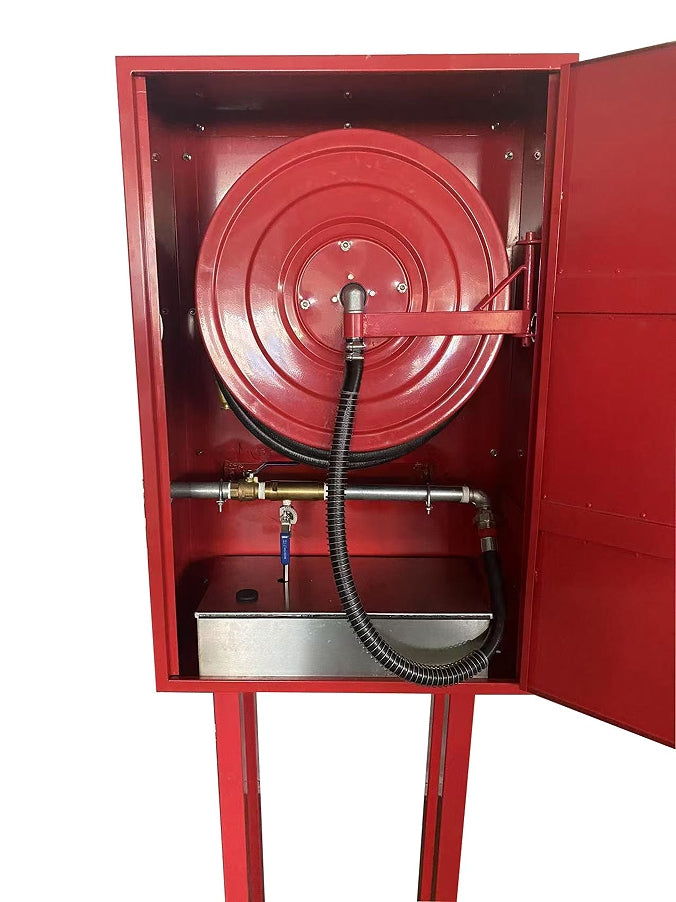

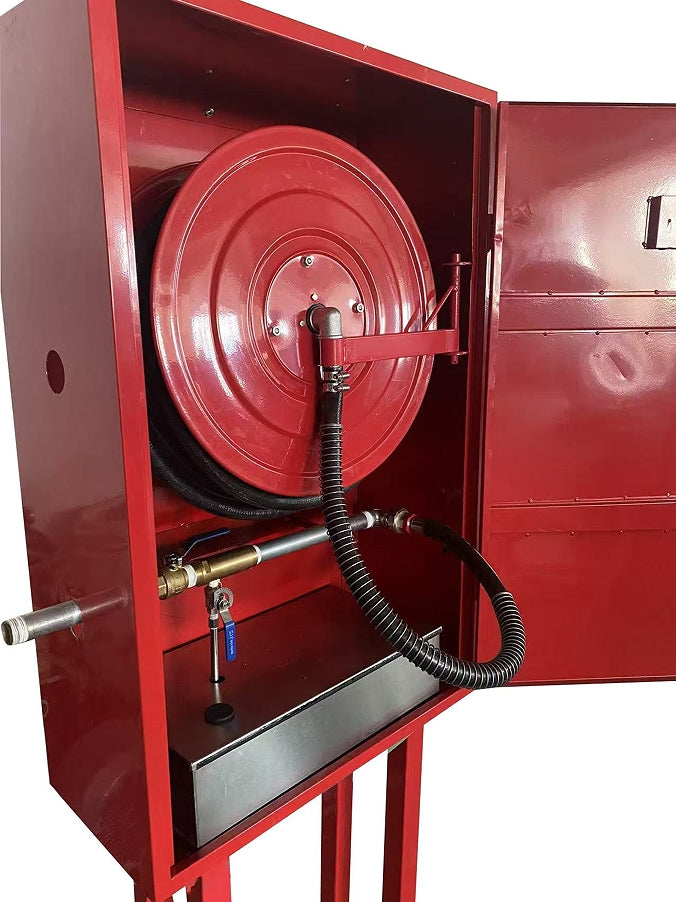

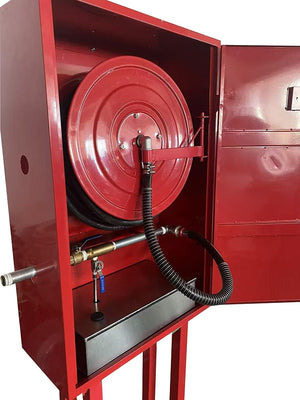

30m x 25mm Swing Arm Fire Hose Reel Induction System In Cabinet, Comes With Stand

Sign Up for Trade Pricing

Description

Includes one 30m x 25mm swing arm hose reel + induction system + 20L agent tank + hose reel cabinet + stand.

Cooling agents sold separately.



Product Specifications

  • Model Number: FHR-INDUCT-CAB
  • 25mm x 30m Swing Arm Type fire hose reel induction system.
  • Including a 25mm x 30m swing arm fire hose reel, a hose reel cabinet and an induction system.
  • Cabinet dimensions: 1100mmH x 730mmW x 330mmD
  • Suits 20L F-500EA agent or Newtonian firefighting foam solution
  • Proportioning rate: 1-3%

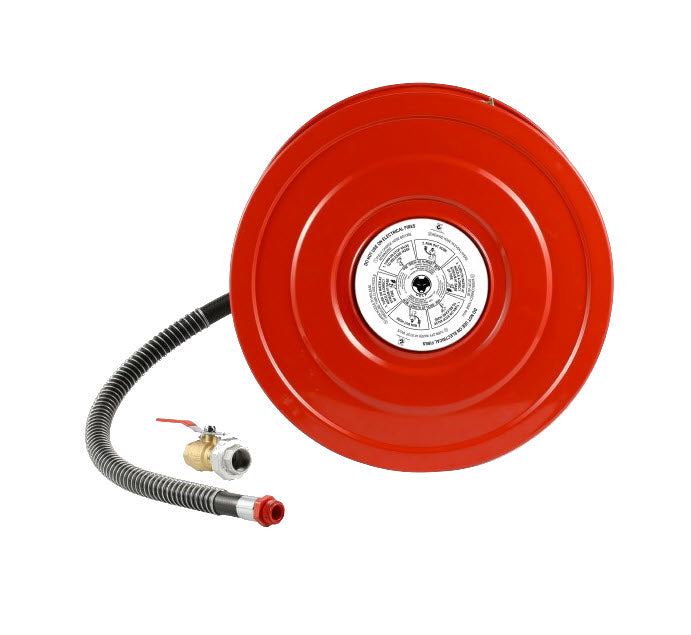

Swing Arm Hose Reel:

  • Model Number: HR3025SA-WF
  • Brand: Wolf
  • Nozzle: 25mm Brass
  • Approvals: AS/NZ 1221
  • Certification: Global-Mark ID 109076
  • Plate Diameter: 550mm
  • Drum Material: Metal red powder coated.
  • Waterway Construction: Stainless Steel
  • Inlet Pipe/Union Construction: PVC
  • Maximum Working Pressure: 1.4 MPa
  • Hydraulic Test Pressure: 2.0MPa
  • Mounting plate Construction: 1mm Steel
  • Mounting Plate Finish: Powder-Coated Red
  • Nozzle Construction: Brass
  • Gooseneck Construction: Brass
  • Single Units: Yes
  • STD Hose Length & Diameter: 30 Metres & 25mm Diameter
  • Warranty: 12 Months
