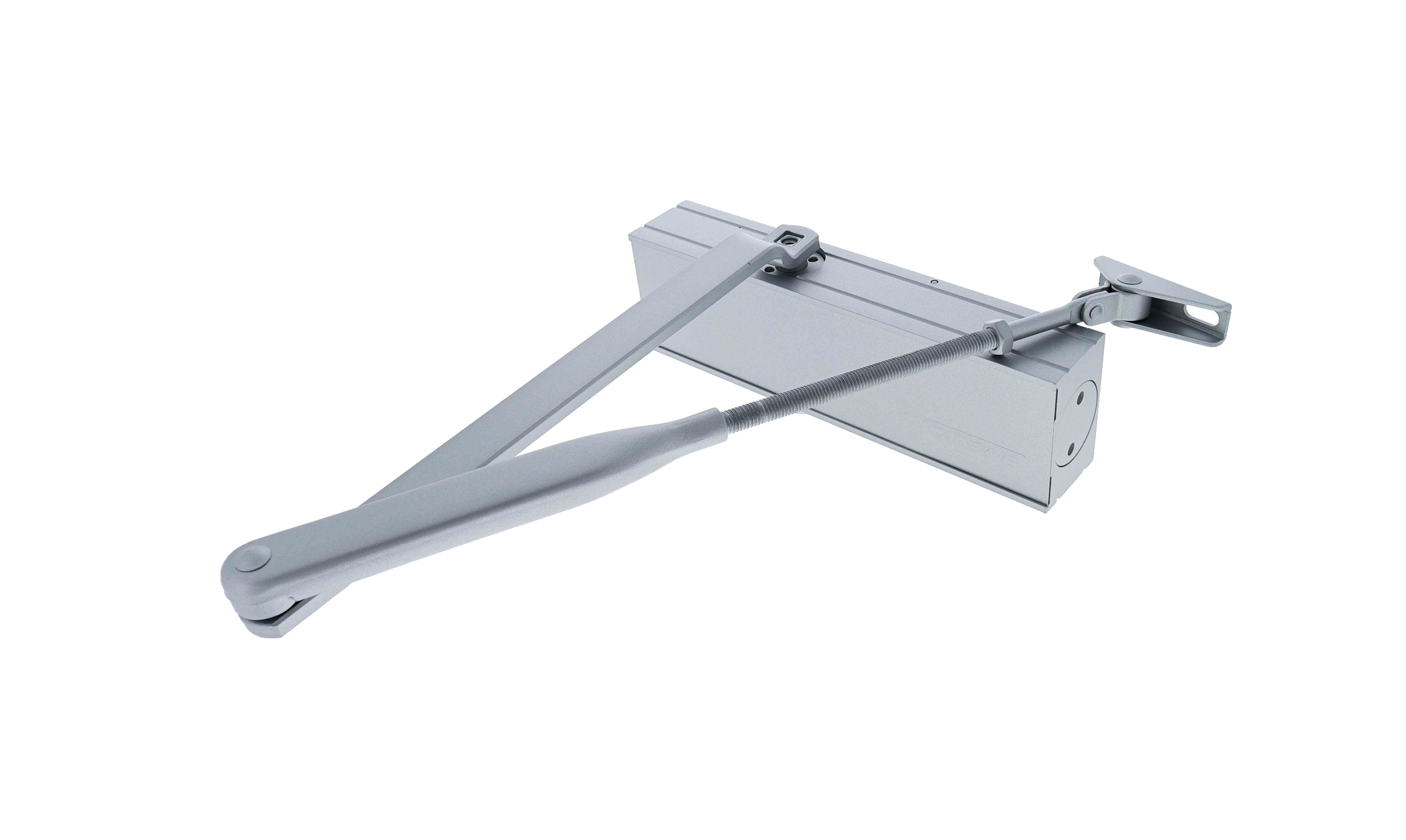

Carbine CDC-3 Radius EN2-4 40kg - 80kg door closer, Silver, with Backcheck
Description
Carbine CDC-3 Radius EN2-4 40kg - 80kg door closer, Silver, with Backcheck
CARBINE

Carbine CDC-3 Radius EN2-4 40kg - 80kg door closer, Silver, with Backcheck

Product Specifications

  • Model Number: CDC-3-S
  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminium
  • Tested to EN1154 standards
  • Cycle tested to 500,000 cycles
  • Standard arm 180 degree opening
  • Parallel arm 130 degree opening
  • Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)
  • Hold open 130 degree opening (180 degree, hold open angle 70-150
  • degree CDC-5)
  • Adjustable closing & latching speed
  • Adjustable back check 70 to 90 degrees
  • Thermo-constant valve
  • Surface mount
  • Transom mount on push side
  • Rack & pinion
  • Positional mounting for closer strength
  • Supplied with standard and parallel arm fittings
  • Single-action door
  • Non-handed installation
  • Supplied with timber and self-drilling metal screws
  • Constructed with extruded anodized aluminium body
  • Slide rail arms for the CDC range include the hold open insert
  • Adjustable power size 2-4
  • Parallel bracket mount on size 3-4
  • Max door width 1100mm
  • Size 2 width of 850mm and weight of 40kg
  • Size 3 width of 950mm and weight of 60kg
  • Size 4 width of 1100mm and weight of 80kg
  • Body size 236mm x 60mm x 39mm
  • Available in silver and matte black finish
